Beyond simple distance detection —
deep learning technology that accurately identifies the human body alone.
Instantly upgrade your worksite safety with a 1-minute installation,
no wiring required.
SD-H75's intelligent AI accurately identifies only people, even amid complex obstacles on the worksite. The difference between mere detection and true identification determines the level of safety on site.
Beyond simple detection — precisely identifying and alerting to human presence only.
See the outstanding performance of SD-H75 in action at real worksites.
Frequent false alarms due to inability to distinguish between objects and people
Deep learning human identification delivers only the alerts that truly matter

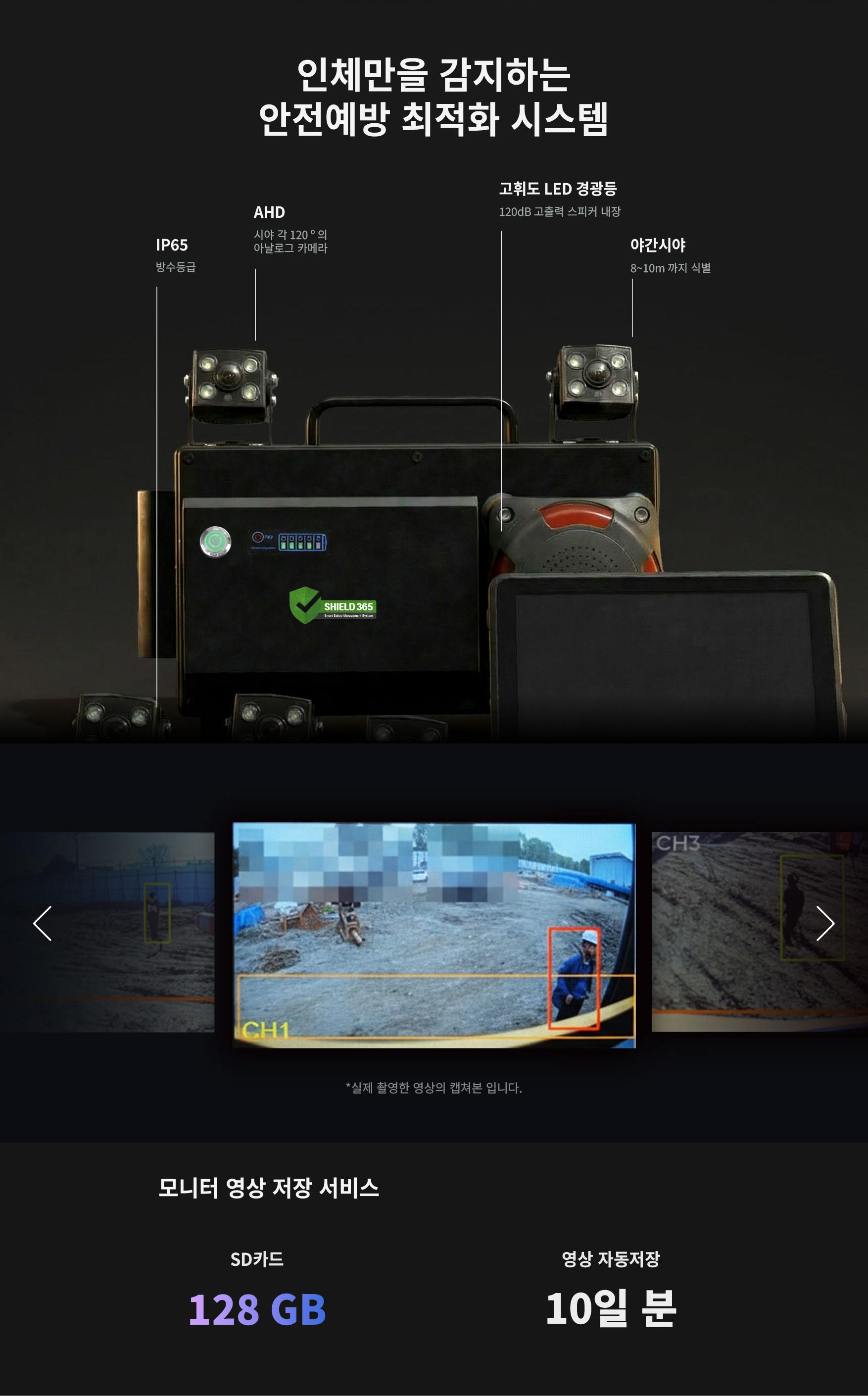

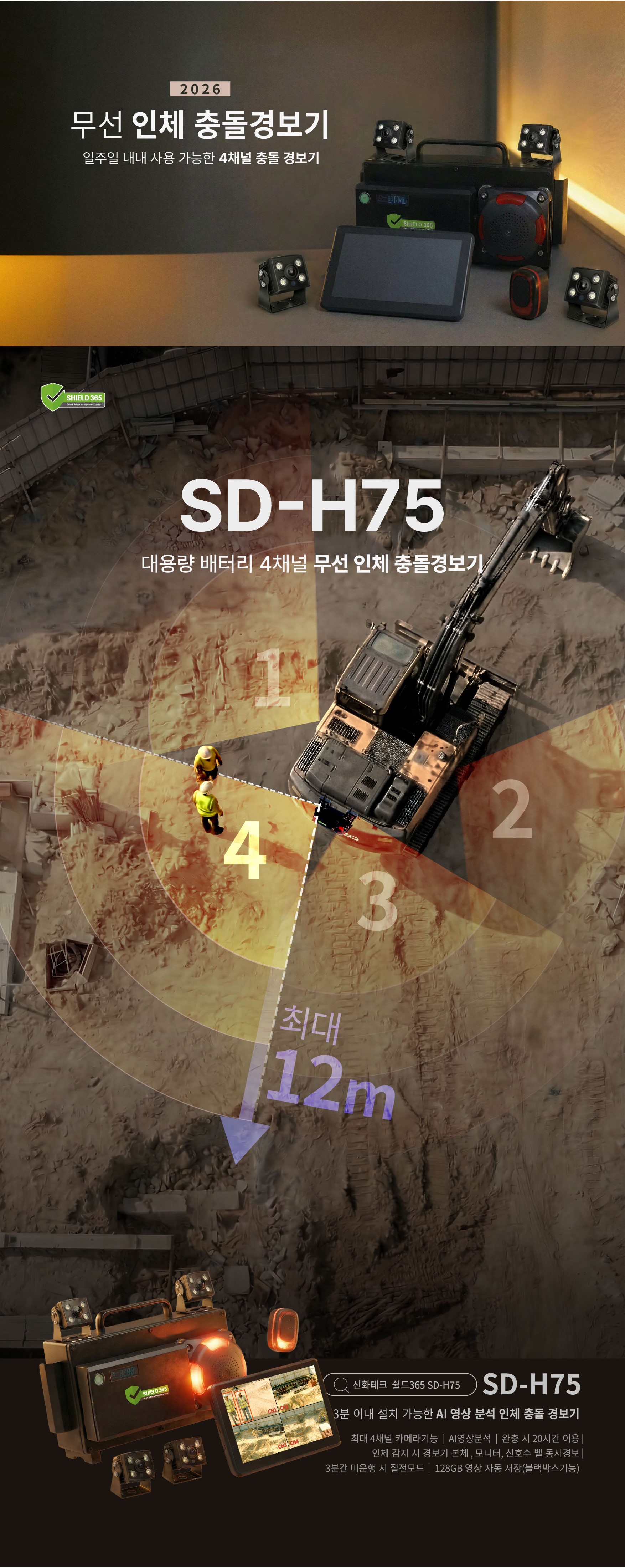

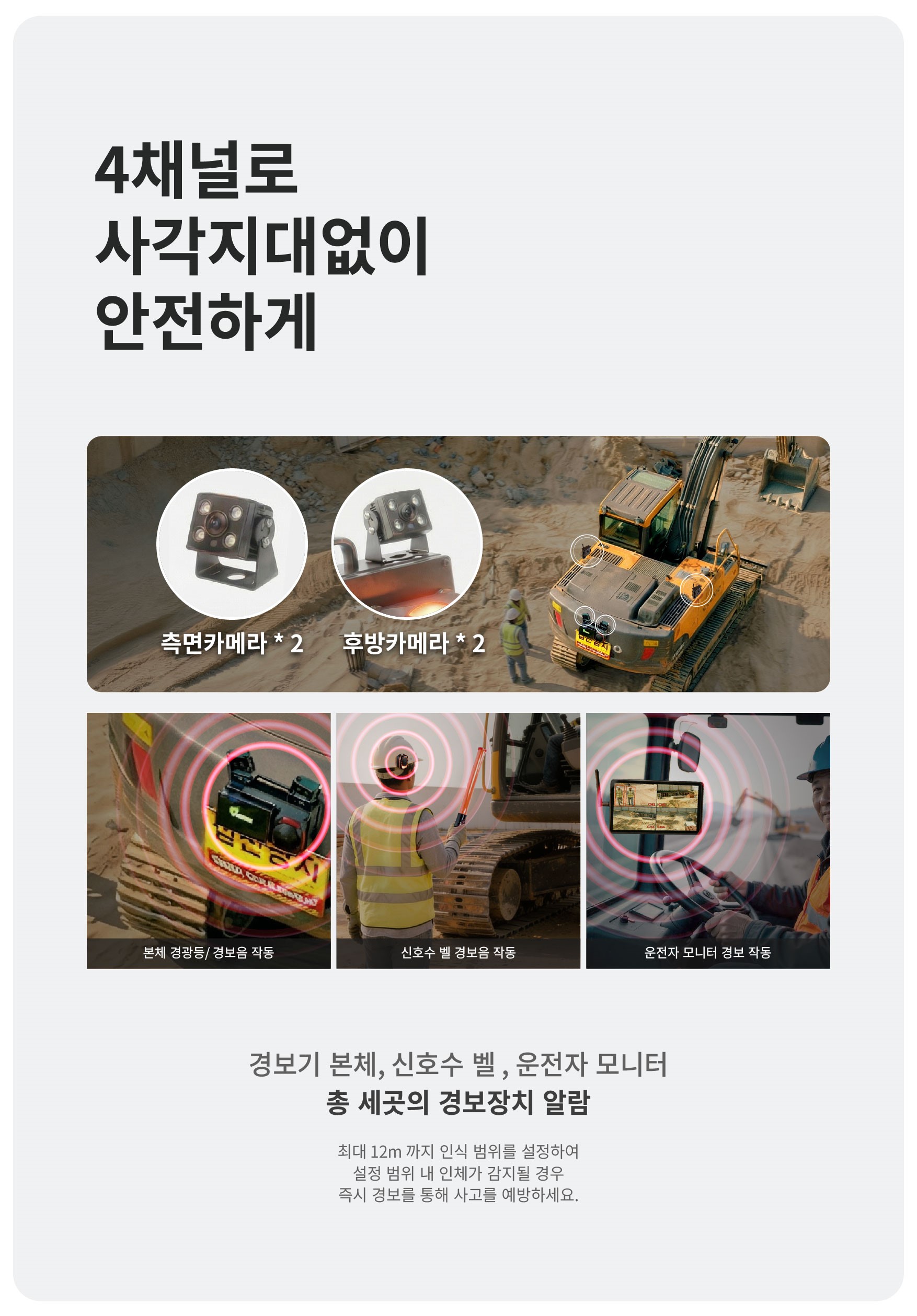

Four cameras covering front, rear, and both sides analyze site conditions in real time. Ignoring objects and responding precisely only when a person approaches to prevent accidents.
Delivers clear monitoring footage even in rainy conditions or dark nighttime worksites.
Top-grade durability with complete dust ingress protection and resistance to high-pressure water washing.
Comes with two lithium batteries for up to 20 continuous hours of use — optimized for shift-work environments.
A high-capacity SD card storing up to 10 days of footage ensures clear evidence in the event of an incident.

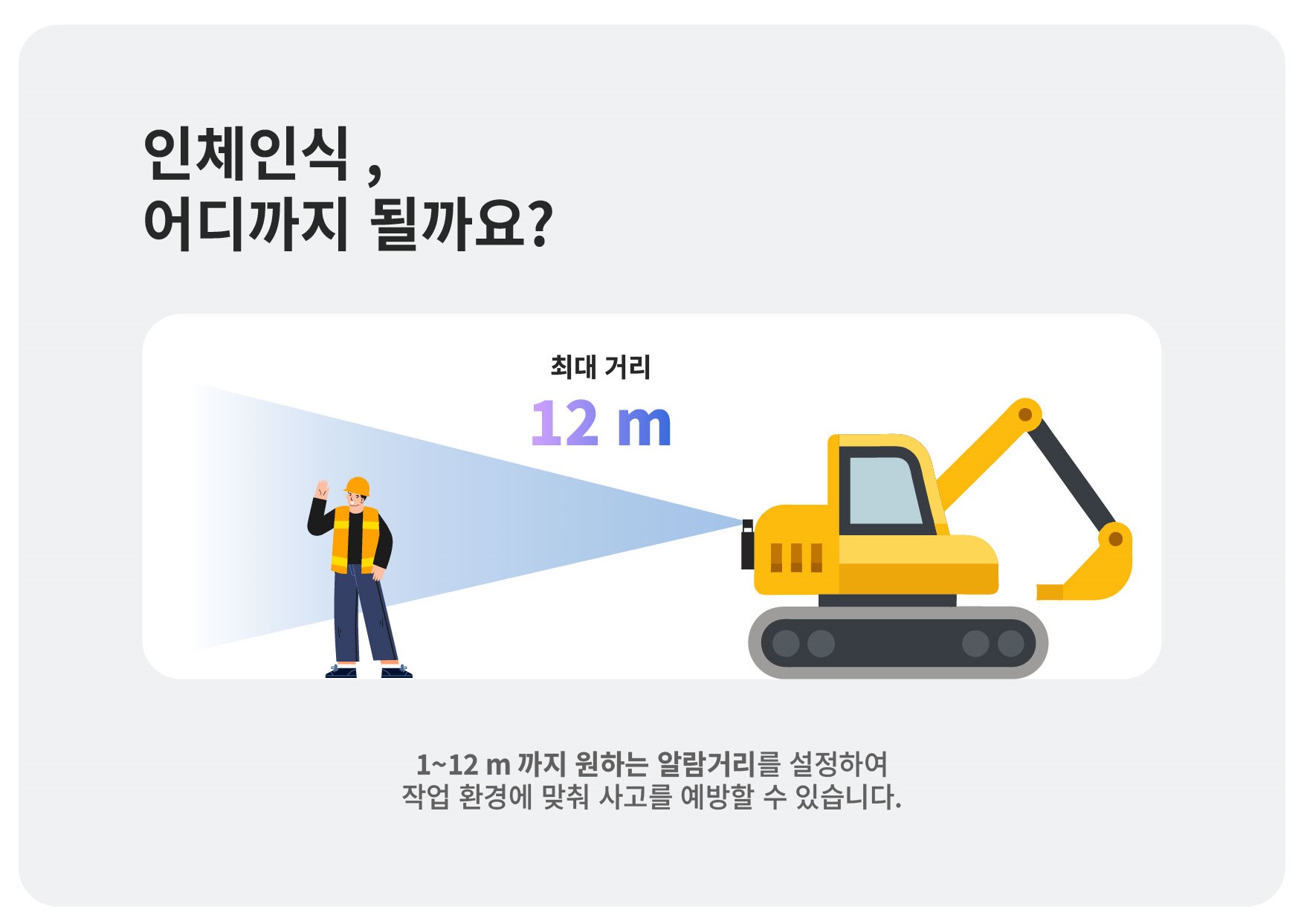

Freely adjustable detection range from 1 to 12m — set up an optimized safety zone tailored to your site conditions.

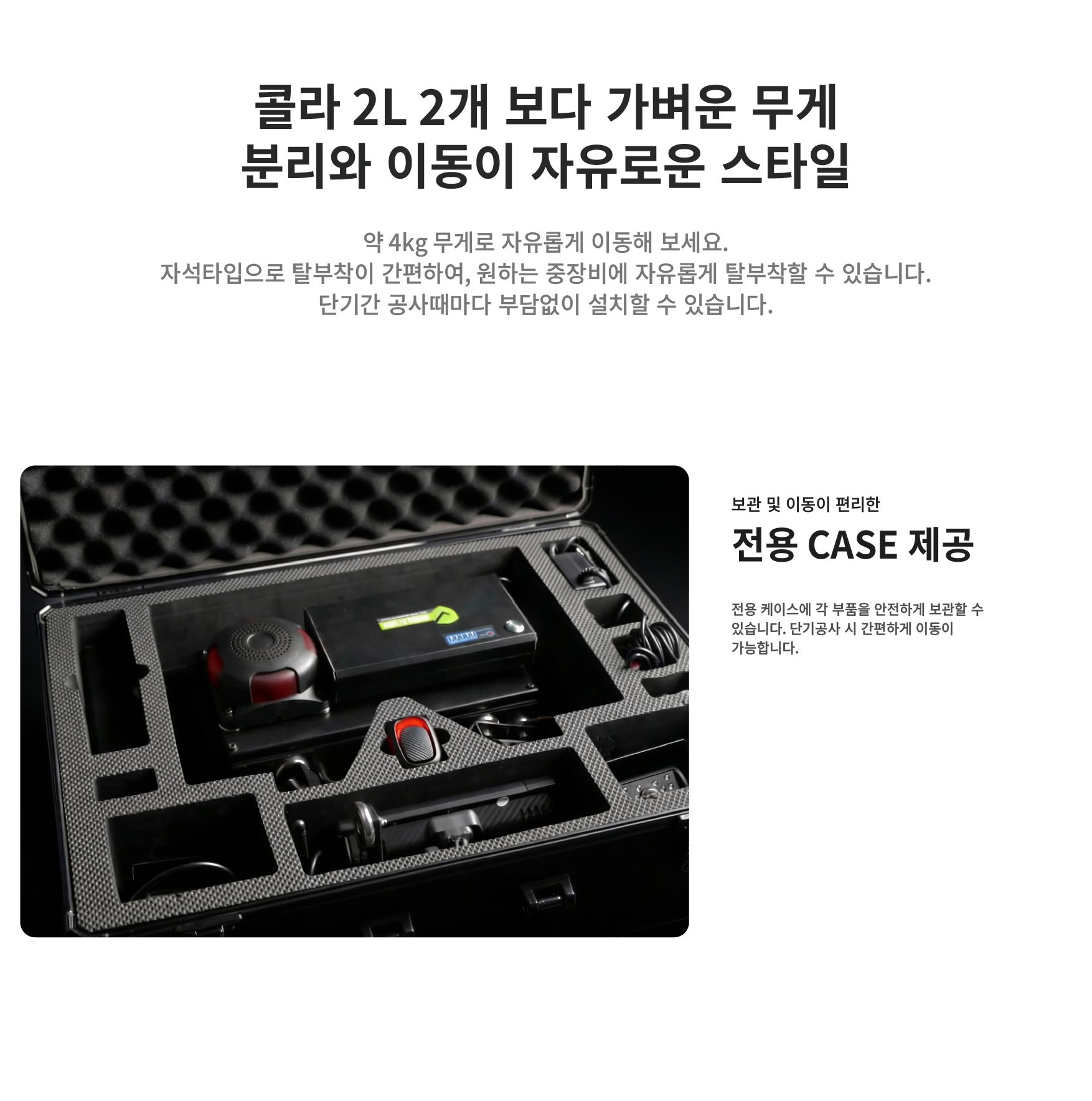

Includes a dedicated hard case for easy transport and storage between equipment.
Supports 4 languages including Korean for immediate response by all foreign workers on site.

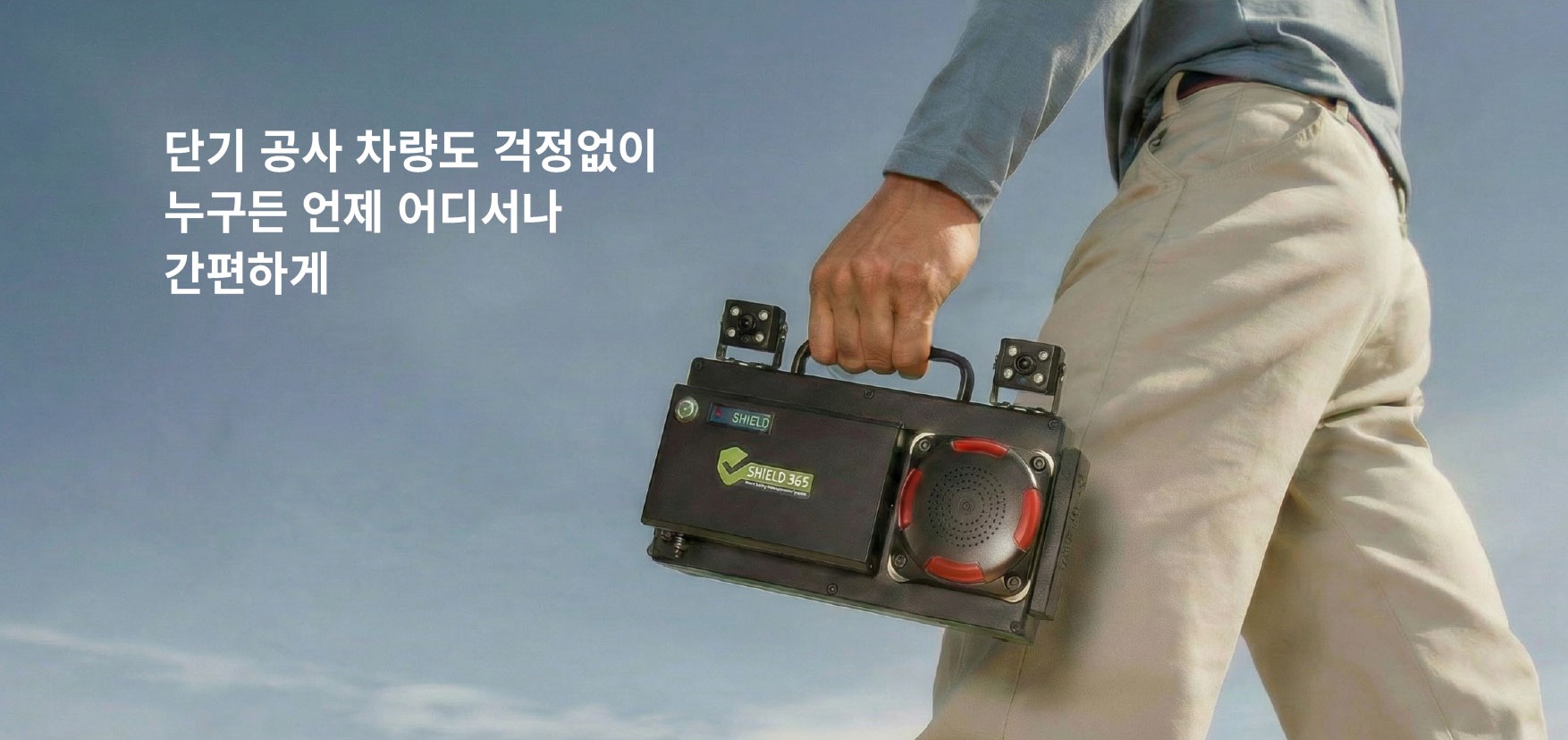

No wiring work or drill holes required. The ultra-strong magnetic mount allows instant installation and removal on owner-operated vehicles or short-term rental equipment.
Visual alarm on 7-inch monitor and dedicated speaker alarm
120dB siren from the main unit and high-brightness LED strobe
Strong vibration and audible warning from a helmet-mounted bell
See the performance already verified across a wide range of heavy equipment and construction sites.
We deliver the perfect safety solution for any environment.
| Product Name | Wireless Entrapment Alarm SD-H75 (Wireless Magnetic Mount) |
|---|---|
| Model | SD-H75 |
| Storage Capacity | 128GB (Up to 10 days of footage) |
| Display Size | 7 inches / 1280 x 720 (720p) |
| Camera Input | 4-Channel |
| Camera Field of View | 120° (D), 68° (V) |
| Operating Time | 20 hours (up to 70 hours in power-saving mode) |
| Speaker | 120 dB (Main Unit) / 110 dB (Spotter Bell) |
| Waterproof Rating | IP69 (Camera), IP65 (Main Unit / Speaker), IP68 (Monitor) |
| Weight | 4.1 kg |
| Dimensions | 32 x 9 x 18 cm (Main Unit) |
| Languages | Korean, English, Japanese, Chinese |
| Interface | 2A Adapter |
| Compatible Equipment | Excavators, forklifts, bulldozers, dump trucks, and all other heavy machinery |
We'll recommend the optimal equipment configuration for your site scale and type.
