Thermal imaging + AI dual camera accurately detects even the smallest sparks.
Install in 10 seconds, operate continuously for 40 hours —
a smart fire prevention system that keeps your site safe.
Combining thermal imaging capable of detecting flames as small as 20cm at a distance of 45m with AI video analysis technology, the system accurately identifies fires without false alarms and instantly sends warning alerts to speakers and the control center.
Using thermal FHD camera and AI video analysis dual technology, the system accurately detects flames as small as 20cm at distances up to 45m — with zero false alarms.

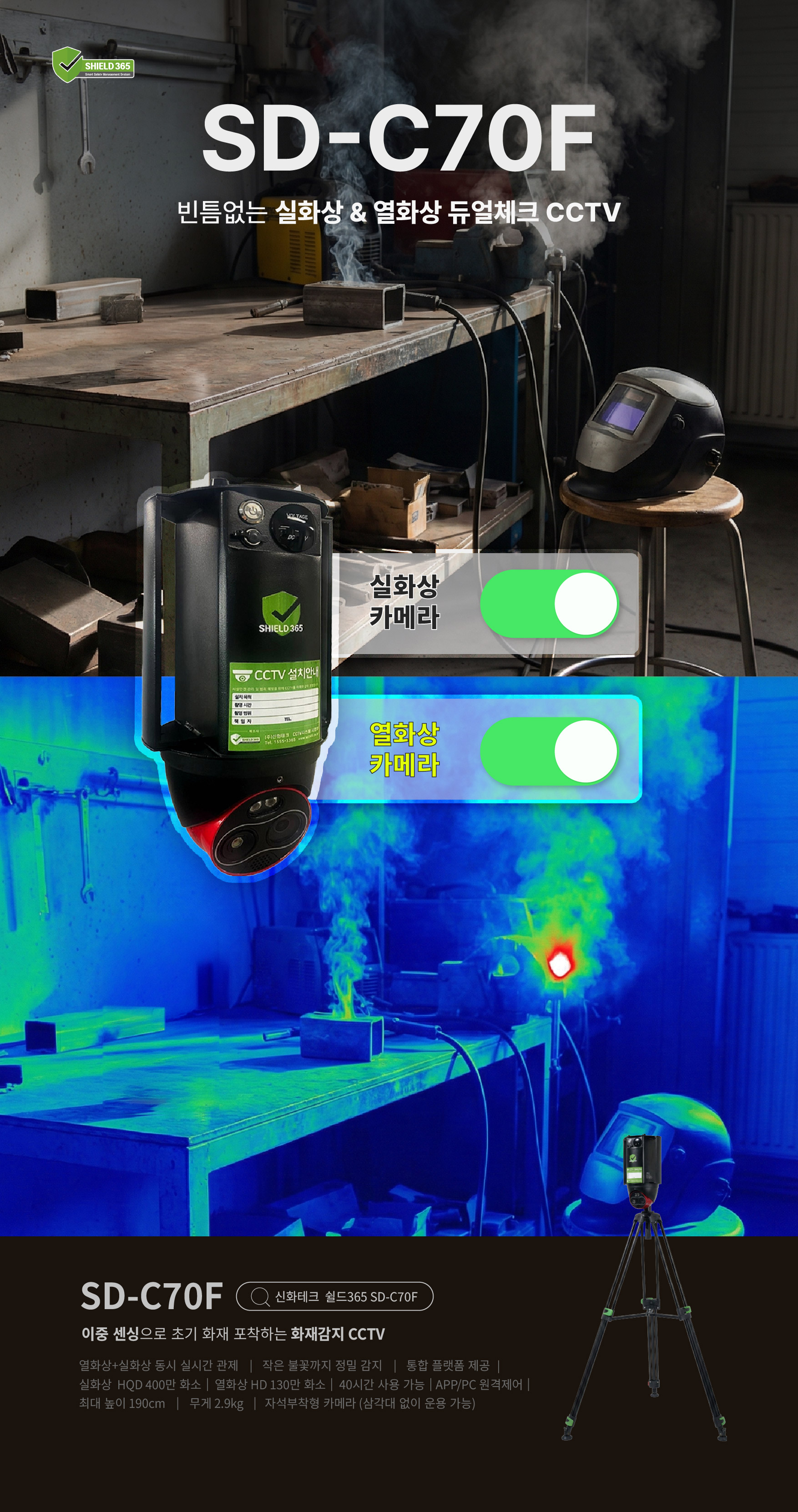

Operates thermal and standard cameras simultaneously, allowing you to view both temperature distribution and real-time footage at once.
Upon fire detection, instant warning alerts are sent to the CCTV speaker and control center for rapid early response.
Wireless design requires no complex wiring — simply unfold the tripod and power on for immediate use within 10 seconds. Magnetic mounting also allows easy installation on steel structures.
Constructed from aluminum, the 3kg body is light enough to carry and install with one hand for effortless mobility.
Equipped with a high-capacity lithium battery (19,600mAh), a single full charge delivers 40 hours of continuous operation — just one charge per week.
Rated IP65 for dust and water resistance, ensuring reliable operation even in harsh outdoor environments including rain, snow, and dust.
Designed for flexible deployment at construction sites, hazardous material storage areas, outdoor worksites, and any location that requires frequent repositioning.
Optimized for any fire-risk environment —
large construction sites, timber yards, factories, and hazardous material storage facilities.
Thermal imaging + AI dual detection ensures no spark goes unnoticed, enabling swift response at all times.
| Product Name | Fire Detection CCTV (SD-C70F) |
|---|---|
| Camera | Thermal Imaging FHD / 2MP / 2592×1944 |
| Detection Method | Thermal Imaging + AI Video Analysis Dual Camera (minimized false alarms) |
| Detection Range | Detects flames as small as 20cm at a distance of up to 45m |
| Battery | Samsung SDI Lithium 19,600mAh (40 hours continuous use on full charge) |
| Power Source | Rechargeable battery + charging adapter / 80W solar panel (optional) |
| Warning Alert | Built-in CCTV speaker + real-time alert to control center / Bluetooth waterproof speaker (optional) |
| Communication | LTE wireless / KT router (NIS CC certified EAL4 grade) |
| Body Material | Aluminum waterproof enclosure |
| Pole Structure | Aluminum tripod (90cm folded / 190cm extended) |
| Weight | 3kg (body only) / 6kg total (with tripod) — portable with one hand |
| Installation | Magnetic mount for easy attachment to steel structures / Setup complete within 10 seconds |
| Waterproof / Dustproof | IP65 rated (fully suited for outdoor environments) |
| Applications | Construction sites, factories, hazardous material storage, timber yards, and other fire-risk areas |
Manage your worksite more safely and smartly with wireless surveillance equipment
that can be deployed anywhere — with no installation constraints.
